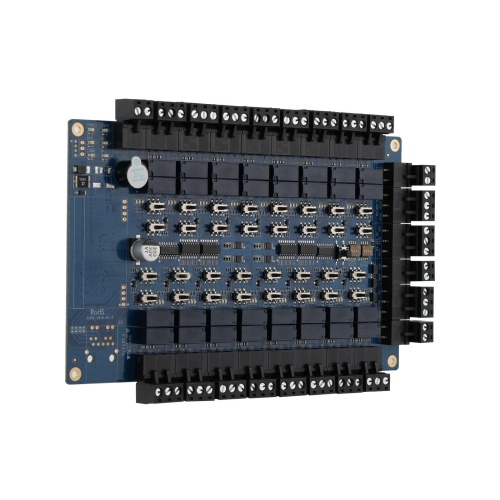

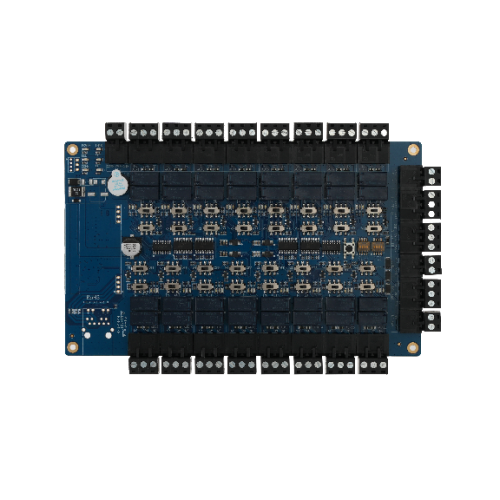

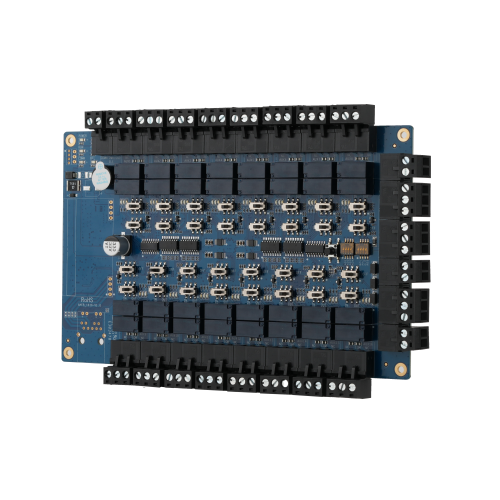

AHEB-1616
AHEB-1616
AHEB Series

I/O Expansion Board

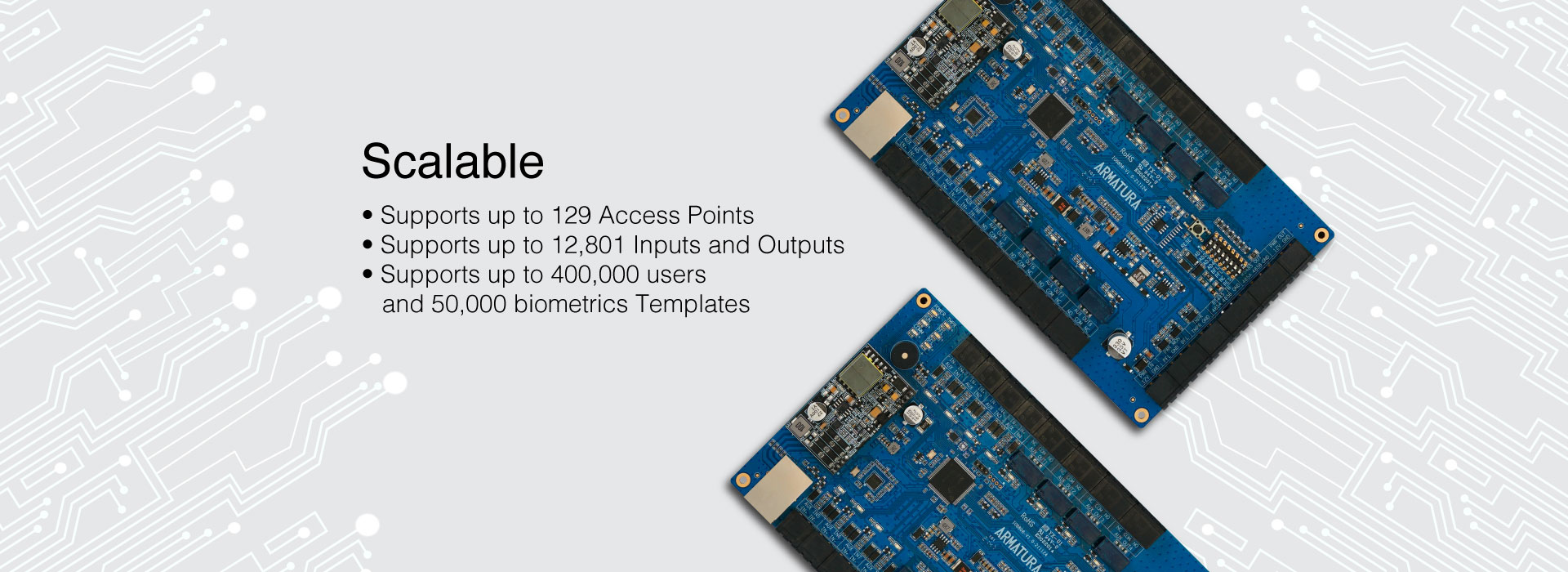

• Scalable
• Supervised Inputs
• Advanced Elevator Control Functions
• Certified OSDP Communication

AHEB-Internal-banner_1920x700-4
AHEB-Internal-banner_1920x700-3
AHEB-Internal-banner_1920x700-2
AHEB-Internal-banner_1920x700-1
Parameters
AHEB-1616
Primary Power

12 - 24 VDC ± 20%, 550 mA maximum

On-Board Firmware

Dual Function Firmware for Access Control Mode & Elevator Control Mode
(Automatic Operation Mode Swapping According to AHSC-1000 / AHDU Series Controller Settings)

RS-485 Connectivity

Input: RS-485 standard / OSDP V2.2
(Dedicated for AHSC-1000/ AHDU series controller communication)
Output: RS-485 standard / OSDP V2.2
(Dedicated for AHEB series I/O expansion board communication)

Number of Ports

1*RS-485
16*configurable I/O ports (AUX IN/OUT)
1* power Input (PWR IN)
1*power output (PWR OUT)
1*power detection (AC Fail)
1* backup battery detection (BAT Fail)
1*tamper input (TMPR)
1*Reset BUTTON

Inputs

Max.16 inputs (Configurable)
4 state supervision, resistor values (5% tolerance),
Normally open contact: use 1.2k, 2.2k. 4.7k or 10k
Normally closed contact: use 1.2k, 2.2k. 4.7k or 10k

Outputs

Max.16 relays (Configurable)
16* Form-C with dry contacts"

AHSC/ AHDU Interface (Access Control Mode and Elevator Control Mode)

RS-485 Protocol

AES-128, OSDP V2 Secure Channel

OSDP Mode

9600-115200 bps, OSDP V2.2, asynchronous, half-duplex, 1 start bit, 8 data bits, and1 stop bit.

Max. Supported Floor
(Elevator Control Mode)

Max.128 floors Management, Upon Combination
Suggested Configuration:
1pcs of AHDU-1260 Controller with 8pcs*AHEB-1616 (direct connection through Armatura RS-485 connection)
Note: All the Relay Ports (exclude the Fire Alarm Port) of AHSC-1000 & AHDU Series Controller Can be Utilized for Floor Management

Advanced Elevator
Control Functions

YES
Support: Automatic Floor Selection,
Floor Selection History Logging

General Elevator
Control Functions

YES

Data Inputs

OSDP standards supported. Maximum cable length: 3937ft. (1200m)

Cable Requirement

Power & Relays

12 - 24 VDC ± 20%, 550 mA maximum

RS-485 Port

One twisted pair with drain wire and shield, 120 ohm resistance, 22-18 AWG,
Maximum cable length: 3937ft (1200m)

Mechanical

Dimensions

7.6” W x 4.6” L x 0.7” H (193 x 116 x 17.5mm)

Weight

224.5g (7.9oz)

Mounting

Wall Mount

Environmental

Temperature

−4°F~131°F(-20°C~55°C), Operating & Storage

Humidity

0-95% RHNC

Certification(s)

CE, FCC, RoHS, UL294, IEC EN/ BS EN 60839 Grade 4

Security Rating

Data Storage Encrypted with Certified EAL6+ Crypto Chipset

Software Interface

Supported Software

Armatura One Security System
